Open Matrix System(OMS)

All the doors are fitted with Shielding Gaskets incorporating water and dust sealing capability.

A filter housing in the base of the cabinet accommodates the AC mains RF fi lters, with access through an internal removable cover. A safety cover protects the mains terminal on the cabinet exterior. Venting is provided through fully gasketted honeycomb RF fi lters and additional airfl ow can be achieved by the
addition of a fan unit, however the cabinet will no longer meet the IP55 dust and moisture standard.

Each unit comes with the following items and features;
-1unit Main frame structure
-Material in Cold Rolled Steel
-4pcs IEC279 Standard 19" mounting angle with RU label at the front;
-1pc base stiffener;
-1pc Front door c/w multi point lock set, louvers and concealed heavy duty hinges;
-1pc Rear door c/w multi point lock set and concealed heavy duty hinges;
-1pc Side panel (secured from inside);
-1set RFI sealing tape for doors and other openings;
-2sets, RFI gaskets self-secured type mounted on the frame doors opening to interface with the doors to provide an effective RFshielding when the doors are in closed position;
-4nos, EMI/RFI honeycomb panels. Each panel good for 2 fans;
-1no top/bottom cable entry panel with custom cut out;
-4nos, threaded and full weld M16 eyebolt assembly;
-4nos, Eyebolts on four top corners;
-50 sets of cagenut assembly;
-Earth wire kits to connect cabinet frames and doors
-1set, fan assembly unit;
-Material pre-treatment of degreasing, de-rusting and phosphating prior to powder-coating
-Powder-coated to RAL 7035, light grey in textured fi nishing.
-EMI fi lters to be mounted on roof of the cabinet:
1pc, 48V DC(100A)
1pc, 230V AC/16A (this is optional for BTS cabinet)
Up to 8pcs RJ45 ethernet
Several through holes for RF N or 7/16 fi xed connectors.

Each unit comes with the following items and features;
- 1unit, Main frame structure;
-Material in Cold Rolled Steel
-4pcs, IEC279 Standard 19" mounting angle with RU label at the front;
-1pc, base stiffener;
-1pc, Front door c/w multi point lock set, louvers and concealed heavy duty hinges;
-1pc, Rear door c/w multi point lock set and concealed heavy duty hinges;
-1pc, Side panel (secured from inside);
-1set, RFI sealing tape for doors and other openings;
-2sets, RFI gaskets self-secured type mounted on the frame doors opening to interface with the doors to provide an effective RF shielding when the doors are in closed position;
-4nos, EMI/RFI honeycomb panels. Each panel good for 2fans;
-1no, top/bottom cable entry panel with custom cut out;
-4nos, threaded and full weld M16 eyebolt assembly;
-4nos, Eyebolts on four top corners;
-50 sets of cagenut assembly;
-Earth wire kits to connect cabinet frames and doors c/w fan assembly unit;
Material pre-treatment of degreasing, de-rusting and phosphating prior to powder-coating
-Powder-cοated to RAL 7035 light grey in textured fi nishing.
-EMI fi lters to be required as follows:
1 or 2pcs, 230V AC/16A
120pcs, UBS 2
1-5 through holes for RF N or 7/16 fi xed connectors.

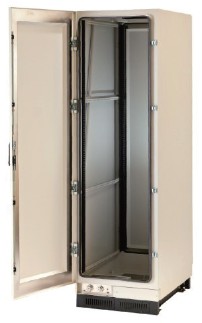

ITEM 3: 600mmx600mmx2200mm 19" EMI Shielded Cabinet

Each unit comes with the following items and features;
-1unit, Main frame structure
-Material in Cold Rolled, Steel, Thickness: 1.5mm. Colour: black commonly.
- Door, honeycomb doors front and back
- 8 pcs, Moving shelves.
- 3 pcs panels for setting PC server.
-2 pcs, waveguide window, honeycomb.
-1pc, AC 230VAC, with 9-sockets inside rack.
-8pcs, N-panel mount connectors, Rear of the rack.
-1pc, ethernet connection, rear of the rack.
-4sets, AC-fans, cooling top of the Rack.
-Shielding effectivenes: 700-2700MHZ
-Earth wire kits to connect cabinet frames and doors
-Material pre-treatment of degreasing, de-rusting and phosphating prior to powder-coating
